    P3528 Series

    High Luminous Efficacy

    永信贵宾会-欢迎您

    FEATURES:

    • Thin encapsulation with heat sink，efficient heat dissipation

    • module etc. cost-effective
    • Applicable to LED bulb，downlights

    • Rated power：1 W / 0 . 5 W / 0 . 2 W


    ABSOLUTE MAXIMUM RATINGS:

    Rated power Color Part number Color temp（K） CRI Ra Min I F( mA)
    TEST
    		 Φv（l m）
    Typ.
    		 VF( V)
    Typ.
    		 I R( µA)
    Max*1
    1W/ 6V
    		 Natural white FM-CP3528WNS-460W-R80 5600-6500 80 150 100 6.4 10
    Neutral white
    		 FM-CP3528WDS-460W-R80 3700-4200 80 150 100 6.4 10
    Warm white
    		 FM-CP3528WLS-460W-R80
    		 2800-3200
    		 80
    		 150
    		 95 6.4
    		 10
    1W/ 3V
    		 Natural white
    		 FM-DP3528WNS-460W-R80
    		 5600-6500 80
    		 300 100 3.2
    		 10
    Neutral white
    		 FM-DP3528WDS-460W-R80
    		 2800-3200
    		 80
    		 300 100 3.2
    		 10
    Warm white
    		 FM-DP3528WLS-460W-R80
    		 2800-3200
    		 80
    		 300 95 3.2
    		 10
    0. 5W
    		 Natural white
    		 FM-P3528WNS-460W-R80
    		 5600-6500
    		 80
    		 150 55 3.2
    		 10
    Neutral white
    		 FM-P3528WDS-460W-R80
    		 3700-4200
    		 80
    		 150 55 3.2
    		 10
    Warm white
    		 FM-P3528WLS-460W-R80
    		 2800-3200
    		 80
    		 150 52 3.2
    		 10
    0. 2W
    		 Natural white
    		 FM-P3528WNS-460Q-R80
    		 5600-6500
    		 80
    		 60 22 3.2
    		 10
    Neutral white
    		 FM-P3528WDS-460Q-R80
    		 3700-4200
    		 80
    		 60 22 3.2
    		 10
    Warm white
    		 FM-P3528WLS-460Q-R80
    		 2800-3200
    		 80
    		 60 20 3.2
    		 10

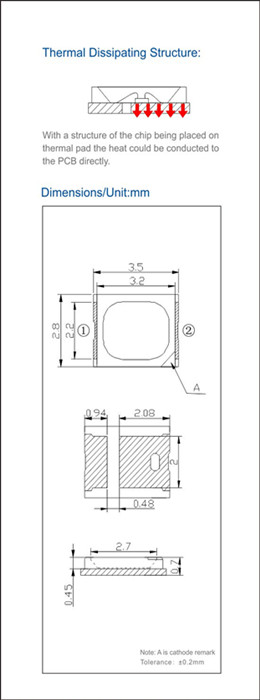

    DIMENSIONS/UNIT(mm):
