    IMD-M07

    永信贵宾会-欢迎您/>

    FEATURES

    ①Integrated Matrix Device (IMD) solution, smaller pixel pitch 0.78, flip chip design and energy saving

    ②Integrated Matrix Device (IMD) solution, 8 pins design, solve the problems of soldering strength and crash.

    ③All flip chip design, better reliability.

    ④Black matt finish encapsulation, no specular reflection, higher brightness and contrast, higher definition image display

    ⑤Achieve to the seamless combination, no modular color difference in whole screen, 100% tested and binning, better color consistency.

    PRODUCT PARAMETERS

    Product Name

    Color IF(mA)
    TEST
    λd(nm)
    Typ
    Iv(mcd)
    Typ
    Vf(V)
    Typ
    View angle
    (deg.)

    IMD-M07
    1.32*1.32*0.63

    5 620 33 2.0 120
    2 535 35 2.5 120
    2 464 5.5 2.6 120

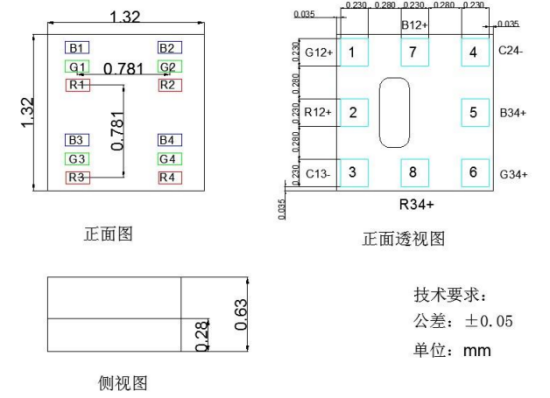

    DIMENSIONS/UNIT(mm)
